The iSpring RCC7AK-UV is an excellent reverse osmosis water filtering program, effective at removing most of the typical debris, germs, chemicals, and germs from the water resource.
In the subsequent article, we take a good look at just how this water filter functions which its experts and cons are and just how effective the device is.
The device includes written directions, but you might also have a look at video tutorials or get their customer support for professional guidance.
Besides, all of the lines are colour-coded, and the directions will direct you step-by-step through the entire setup procedure. The machine has a 1-year limited guarantee and lifetime technical assistance.
This version has a filter package that is whole. You will gain from an alkaline pH filter, and this will remineralize the water which makes it simpler tasting and healthier and out of a UV light too.
The UV light is perfect for killing germs, viruses, and other germs usually within a water resource.
Apart from the filtering system, you’ll also obtain a faucet when you get a unit. The faucet comes with an elegant U layout, and it’ll make a fantastic addition to each kitchen possibly using a classical or a contemporary layout.
>>Check iSpring RCC7AK 6 Reverse Osmosis Drinking Water Filtration System<<
Features of iSpring RCC7AK
- It removes impurities from water. It also removes RO from the water. The taste of water is very great spending 2 cents per bottle.
- It removes pollutants from water to 99 to 1000 plus such as fluoride, chlorine, lead, drugs, arsenic, pesticide, and fertilizer
- Proudly Constructed in the USA; It has got WQA gold certificate and has got NSF standard 58. It also ensures solid construction, premium material, and super performance.
- Manufacturer Direct Sale – The brand is USA standard; high-quality RO system ensures safe water. The price is low and provides a healthy life.
- Genuine Cartridge Set at Low Cost – Fine coconut carbon, Gradient sediment filter, 0.0001 micron RO membrane, guaranteed it will remain for a long time, and the price is low
Pros
- Works very smoothly
- 75 gallons of water per day
- The cost is fair for the quality of the product
- The taste of water is very good as a water bottle, when not better
- Simple to install with accurately fitted components to adjust with most pipes systems
Cons
- Delicate O ring causes some leaks, but it is possible to replace with a better one
- Waste is very high, about 4 to 1 in some cases or even higher
- Do not product alkaline result as stated
>>Check More Features And Benefits of iSpring RCC7AK 6 RO Filtration System<<

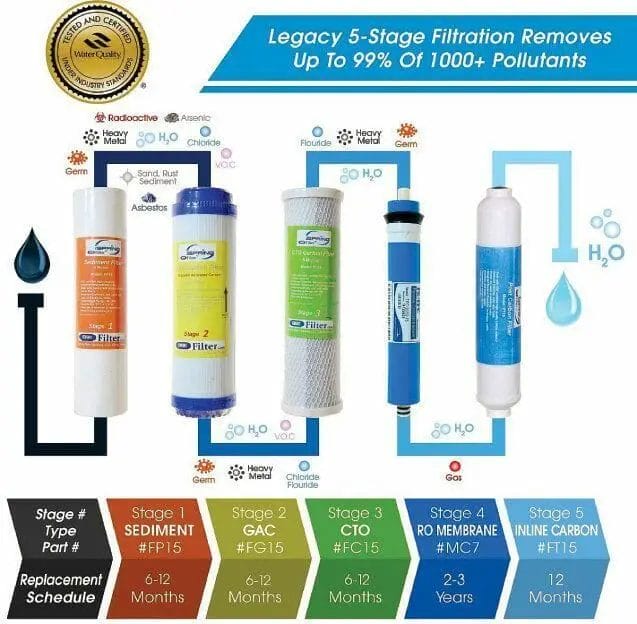

How does iSpring RCC7AK work?
If you start your drinking water faucet, or if you pass water through 5-micron sediment filter you will see dirt, silt, and rust.
It may disturb the taste and odor of the water, along with BTEX, mineral oil, phenol, Polyaromatic hydrocarbons (PACs), and halogenated substance.
There is a carbon block filter that will remove residual color, odds, and taste. Some chemicals here which are difficult to remove such as chloramines.
The 4th stage of the system is very important. It has got NSF certificate for RO system. The similar method is applied to intact bottled water.
There is a tiny hole in the semipermeable membrane size of 0,0001 microns and removes lead, arsenic, chromium, perchlorate, TDS, copper, sodium and other contaminants.
It also helps to remove giardia as well as cryptosporidia.
In the 5th stage of water filtration, there is a fine GAC filter that is the concluding polishing filter. It passes water to the loading tank.
The six stages of mineral and alkaline filter which add the very little amount of minerals and magnesium. Adding alkaline develops the taste of the water.
The final result is the great tasting water only spending one cent on each bottle. iSpring RCC7AK will save you to use 16000 plastic bottles from contaminating the environment. Within this period, you need to replace or use only one single filter.
ispring rcc7ak installation
Step 1: Set up Feed Water Adapter (AFW)
1.1 Look at figure five. Shut off the Cold Water Line through the cold water supply valve beneath the sink. To lessen pressure, expose the kitchen faucet and be sure water stops prior to proceeding to the next phase. Pick up a bucket and towel to grasp water drips.
Separate Kitchen Faucet Connector (KFC) pipe as of CWSV.
1.2 Confirm O-ring within AFW female end and curl it onto CWSV. Exercise pliers or wrench to tighten the screwup.
1.3 Coil KFC to the male end of AFW. Shift the handle of AFW to irritable location. Start CWSV slightly, notice and fasten a leak.
1.4 Attach the 1/4” RED tubing with AFW.
Step 2: set up Drinking Water Faucet
2.1 If in your kitchen sink there remains no half hole, you need to drill a hole. Wipe it well and make the area completely dry. Make contact with us for the bigger front plate as well as washer since the gap is very big to cover.
2.2 Take out blue protection film from the frontage plate, trip it on the valve thread and fall on the black rubber-like a washer. Go into the faucet thread part into the gap. Sealer or plumber glues may be applied.
2.3 Beneath the sink, tighten the black rubber washer and lastly fasten washer with the nut.
2.4 Glide the firmness fitting nut and the collar of the BLUE tubing, push the insert with the tubing, enter it in the faucet end and then tighten up the nut. Draw the tubing to notice if this is safe enough.
Step 3: Set up Drain Saddle
1.1 Select a spot over the drain pipe which is suitable for setting up the tubing and the drain saddle. Horizontal pipe is suggested to lessen the soaked sound.
3.2 Make a ¼ inch hole to the pipe of the drain; attach the muggy black pad surrounding the hole.
3.3 Slash the BLACK tubing end somewhat to make a 45-degree angle. Trip the plastic nut as well as a forward plate of the tubing.
Enter the tubing in ¼ inch hole in the pipe of the drain, adjust the backplate as well as tighten two screws by hex nuts when the tubing stays in the gap.
3.4 Tauten the nut of the Drain burden with hand. Draw the tubing to see if it is safe.
Step 4: Put in the Vertical Filters: Stages one, two and three
4.1 Be happy to know that the O ring is set inside the channel to the summit of the filter lodging. Food graded silicon jelly can be applied to aid the O ring to keep in the right place as well as seal better.
4.2 Filter cartridges are reserved in shrink enfold. Take a note of the indication mark on the sticker before removing the wrap.
(GAC stage).
4.3 Keep the filtering cartridges with the housing, surely it is in the middle and lump protrude from the underneath of the housing fits the centre hole of the filter.
4.4 Add a screw to the housing, having filters joined up the shelter caps. The lid holds a centre knob that must be entered into the main gap of the filter cartridge. Bend the housing to the clockwise direction with hand, and use a housing wrench to tighten up for ¼ to ½ turn. It is wise not to tighten more. It can create leaks, and it would be tuff to unscrew the housing if replacing filters.
4.5 Notice the step from 1.1 to 1.4 to set up the GAC and CTO filter.
Note: The 2nd stage GAC is the one filter which has to go in a certain direction. Be sure that the end along with the rubber washer ahead so adds by housing cap.
Step 5: Set up Tank Shut-off Valve (TSV)
5.1 Enfold ten to 15 turns to Teflon tape clockwise with the metal thread to the up of the tank.
5.2 Use screw with the Tank turns off valve on then tighten up with your hand. Surely do not tighten much.
5.3 Attach the YELLOW tubing on the Quick-adjust of TSV.
Step 6: Put in Reverse Osmosis Membrane
6.1 Release the membrane housing screw cap. At first, you have to disconnect the white ¼ inch tubing out of the Intel Quick-fitting in the membrane housing cap and after that detach the cap. Finally, a chunky rubber band may be slipped on the housing body by the stronger handhold.
6.2 Take out the membrane from the sealed bag. Go to the flow direction sign to the membrane and tightly enter the membrane with the housing to the smaller end which has two black O ring heads. At first, the bigger ending is with the housing opening. Notice figure 8 to 9.
6.3 Prior twisting the housing cap behind a notice that the O ring is snagged with the membrane housing. Hang firmly and tighten up for ¼ to ½ turns applying a little plastic housing wrench. Better not to tighten more. It is wise not to connect the tubing with a cove on the lid to this point.
Step 7: Tubing clasp up (model definite sub-steps are marked with * )
7.1 Look at figure five and figure six then RCC7P and RCC7 TOP VIEW, note adding points A-B, C-D, E-F, and G-H.
7.2 Toward the iSpring logo up ahead, the pre-filter first stage is added to the right-hand side. Add the RED tubing Feed Water Adapter with the elbow fitting.
7.3 Add the Flow Restrictor that is a three inches long cylinder having a flow signal remaining beside the membrane housing toward the Drain Saddle along with Black tubing.
7.4 To the right side of the Post Carbon Filter, add the Tee-fitting and the Tank Valve to the Yellow tubing.
7.5 * Model without UV/AK/DI: To the last section of FT15, enter the BLUE tubing to the elbow fitting.
* Model with UV/AK/DI: RO water goes out of the point G at FT15 and runs toward the left end of the following.
Therefore the Blue tubing must be added to the last end of the ultimate stage that may be the AK/ UV/ DI filter.
7.6 Add another end of the BLUE tubing with the RO faucet.
7.7 You can arrange the tubings but keep more length. Therefore, the filter is possible to move easily in and out of the cabinet if replacing filters.
7.8 You can hang the system with the help of two 10 x 1-1/4 Phillips Flat Wood Screws. It may make the replacing filter cartridges easier.
Step 8: Structure Start-Up (model definite sub-steps are manifest with * )
* As the model comes with a UV stage, it is better not to plug in power along with the system that is completely flushed.
8.1 Be sure that all tubings are not bent. Shutdown Shut Off valve. Keep a bath towel to hold a water leak.
8.2 To give up residual carbon in the first three states from getting to the RO membrane, the tubing with the inlet of the RO membrane housing cap is needed to keep disconnected. Flush the first three stages of the bucket, and then water comes out clear and finally re-connects the tubing with the RO membrane.
8.3 Open the Feed Water Adapter Valve and after that slow start the cold water supply valve.
Notice any leakage. There are main three causes of leaks 1) The tub is not completely entered to the quick connect fitting 2) the cap. Housing is not enough tightened up or off thread 3) the O ring is not to the right place or kinked.
8.4 * Switch on booster pump power if you have bought one.
8.5 Within five minutes, RO must begin dripping. Keep it open for at least ten minutes. It flushes the system excluding the tank. Water is black for loose carbon from the new carbon filters. By the help of some air bubble, it will turn into clear.
8.6 Turn off the RO Drinking Faucet. Start the Tank Shutoff Valve. Pass some time to fill up the tank. In warm summer it can take up to 1.5 hours or in cold winter, it will take 3 hours to fill up a 3.2-gallon tank having about 3.5 gallons keeping capacity.
8.7 After 2 hours, start the RO Drinking Faucet to flush out whole water in the tank. It is forbidden to use the first tank of water. The water comes out of the faucet may be stronger as the water pressure is built up to 35 to 40 psi if filled it up. Since the water flow changes again to a trickle, it indicates that the tank is vacant.
8.8 * Connect the UV power and notice as the RO faucet moves the UV off and on by the Flow Sensor Switch.
8.9 The reverse osmosis membrane is the main effective thing to remove total dissolved solids. The taste of the water will be great if the system works properly. When the TDS of the source water is 100 ppm, the RO water must be less than 10 ppm.
8.10 After setting up the system notice if there is any leak for the first two weeks. Besides a bucket may be kept under the system in the case of any leaks. A Flood Alarm may be utilized for more protection.
Why Do You Choose iSpring RCC7AK
iSpring RCC7AK is a famous and popular company who produces a reverse osmosis system to offer service for some light commercial or residential water treatments. Every day they are trying to upgrade the standard of the product to cross the limit of the customers’ expectation.
The RCC7AK has got certificates from the different organizations likely ISO and NSF. It is made with a unique design so that it lasts for a long time. The other reason it will give longtime service. It ensures healthy and freshwater. So there is no need to think about safety or purity.
[youtube https://www.youtube.com/watch?v=EjUg36pYE8o]
Alkaline Update
This is a concern of follow-up that I have pH water and have original FA 15 alkaline filter appear with RO system. The installation date is December 2015. The customer service is excellent and useful.
In January 2016, they send me an FX15 3 stage alkaline filter without any cost as I told them the pH is around six instead of more than seven.
The main screen has two stages. I measured it with three stages filter and found the pH is below 7. For my mistake, it was over 8.
I use the pH test strips made of saliva and used for urine testing instead of water testing. I become confirm as I bought a bottle of alkaline water which said pH is 8 in level.
It was 7 in my test strips. The water was more alkaline coming out of the 3 stage FX 15 filter that I purchased from the store.
There is a picture in which it is shown the level of alkaline of the two stages and three stages side by the side of the RO water which has no alkaline filter. The result of the blue color is dramatic though there is no pH number.
I need to test strips to test my drinking water. I have the procrastinated on, and I would like to post it for the readers who are thinking about the pH. My family likes the water of the RO system, and I am happy with the service of the iSpring.
>>See Specifications, Customer Reviews & Rating of iSpring RCC7AK 6 RO Filtration System<<
Should have done this a dull time ago!
The RO system is so far the best system. The price is very reasonable and makes contact with the company easily. I asked them many questions, and they answered all. The installation is simple and well documented.
I suggest my friend use it, but he would not like to spend money on this. Do you know the proverb” you will get what you pay for?
This also is true for me. There is an installation booklet, and he knew how to install the unit. The faucet is cheesy, and I am happy to buy it. I have done this, and it saves me hundreds of bottle of water. So gratitude to iSpring.
Efficient Performance and Convenient
If you think about the water system, noise is a great factor. If it creates more sound, it is not good. This is not the problem if you face iSpring RCC7AK. For efficient design, it produces low noise. The unit is perfect for the small family having small babies.
This is not at all. The iSpring RCC7AK can lift up 75 gallons of water a day. You may use the water for cooking and drinking. Compare the wastewater ratio 2:1 and you have a real working device.

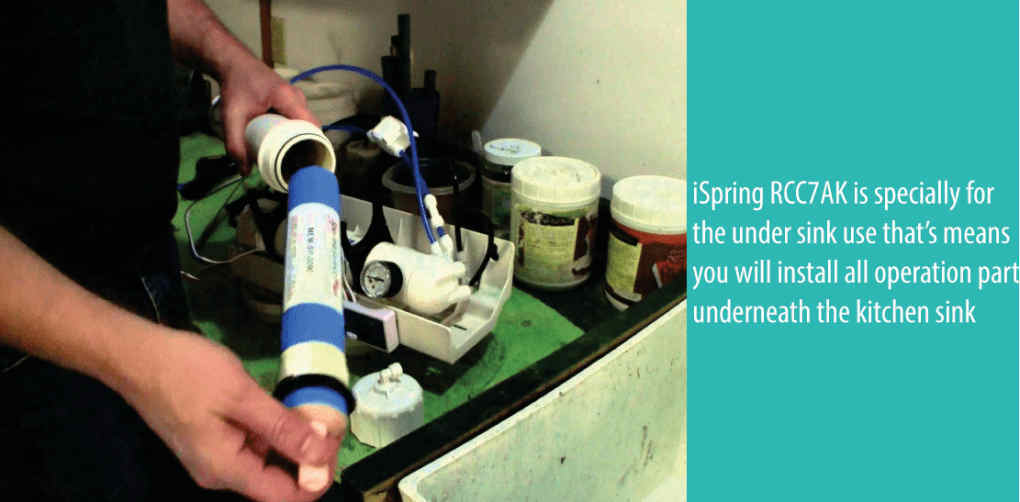

What Media Says On iSpring RCC7AK Review
iSpring RCC7AK is made to under sink meaning that you need to install under the kitchen sink. All the parts are added here. So you can install it for yourself. Do you like to get pure mineral water?
Install the system and have significant testing water for your family. It is high quality, problem-free and used mostly in the cities. A most impressive system for fresh water and remove pollutants such as fluoride, chlorine, arsenic, lead, pharmaceuticals, and microorganisms.
Warranty of iSpring RCC7AK
There is 30 days’ warranty of iSpring Water Filtration system for any default. Besides the manufacturer offers you, 1-year warranty. If you would like, know more you can directly ask me any questions.
Watch The Video of iSpring RCC7AK Review
[youtube https://www.youtube.com/watch?v=x07-CKYWtjI]
>>Watch More Videos of iSpring RCC7AK 6 RO Filtration System<<
Frequently Asked Questions (FAQs) On iSpring RCC7AK Review
Question: Can I add the unit to the fridge?
Answer: Of course it can. Faucet adds correctly with most of the units.
Question: what does the reason of my water become cloudy?
Answer: You need to run water through the unit for sometimes before use. The instructions are stated in the books.
Question: Can I add it to my unit or well or on a water softener?
Answer: The unit will offer you good service. If you connect with a water softener, the life will be prolonged of the filter. This is very dependable also.
Question: Why the price is less than the other brand of a similar standard?
Answer: It is made to be cost-effective. Over-engineering and high-quality materials are the reason for less price.
>>Check More FAQs of iSpring RCC7AK 6 RO Filtration System<
Product Info – iSpring RCC7AK
Item Weight 20 pounds
Origin China
Product Size 15 x 8 x 18 inches
ASIN B005LJ8EXU
Final Verdict
The iSpring RCC7AK is a good type of alternative albeit and is a more costly solution. There are six robust stages of the filtration system. It does not mineralize the water. The other benefit is that it comes very handy.
You are trying to get an option that has faster production rates. Therefore, Home Master TMAFC Artesian is an ideal option. The important matter is that it has a double water flow rate along with long-lasting filters. The other thing is that it can mineralize the water although it is very expensive delivers
>>Buy iSpring RCC7AK 6 RO Filtration System<
